IXFH16N50P Polar MOSFET

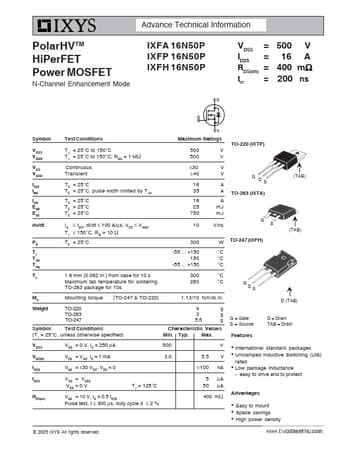

Advance Technical Information www.DataSheet4U.com PolarHVTM HiPerFET Power MOSFET N-Channel Enhancement Mode IXFA 16N50P IXFP 16N50P IXFH 16N50P VDSS ID25 RDS(on) trr = 500 V = 16 A = 400 mΩ = 200 ns Symbol VDSS VDGR VGS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/µs, VDD ≤ VDSS, TJ ≤ 150°C, RG = .

IXFH16N50P Features

* z z z International standard packages Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect VGS = 10 V, ID = 0.5 ID25 Pulse test, t ≤ 300 µs, duty cycle d ≤ 2 % 400 m Ω Advantages z z z Easy to mount Space savings High power density DS99357A(03/05) ©
