IXFH15N80Q - HiPerFET Power MOSFETs

IXYS Corporation

📥 Download Datasheet

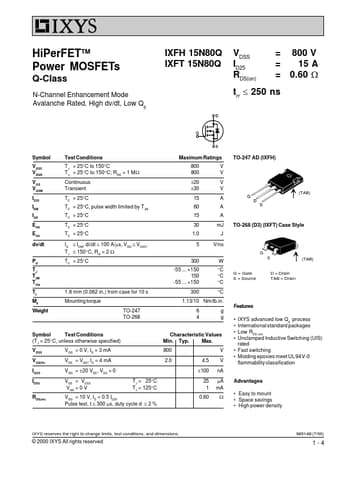

IXFH15N80Q Datasheet Preview — Preview of IXFH15N80Q PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IXFH15N80Q
Manufacturer	IXYS Corporation
File Size	111.91 KB
Description	HiPerFET Power MOSFETs
Datasheet	IXFH15N80Q_IXYSCorporation.pdf

IXFH15N80Q Product details

Features

G = Gate S = Source S D = Drain TAB = Drain (TAB) 1.6 mm (0.062 in. ) from case for 10 s Mounting torque TO-247 TO-268 300 1.13/10 Nm/lb. in. 6 4 g g Symbol Test Conditions (TJ = 25°C, unless otherwise specified) VDSS VGS(th) IGSS IDSS RDS(on) VGS = 0 V, ID = 3 mA VDS = VGS, ID = 4 mA VGS = ±20 VDC, VDS = 0 VDS = VDSS VGS = 0 V TJ = 25°C TJ = 125°C Characteristic Values Min. Typ. Max. 800 2.0 4.5 ±100 25 1 0.60 V V nA mA mA W IXYS advanced low Qg pro.
