IS67WVE1M16EALL - 16Mb Async/Page PSRAM

Download the IS67WVE1M16EALL datasheet PDF (IS66WVE1M16EALL included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 16mb async/page psram.

Features

  • Asynchronous and page mode interface.
  • Dual voltage rails for optional performance.
  • ALL: VDD 1.7V~1.95V, VDDQ 1.7V~1.95V.
  • BLL: VDD 2.7V~3.6V, VDDQ 2.7V~3.6V.
  • CLL: VDD 1.7V~1.95V, VDDQ 2.7V~3.6V.
  • Page mode read access.
  • Interpage Read access : 60ns, 70ns.
  • Intrapage Read access : 25ns.
  • Low Power Consumption.
  • Asynchronous Opera.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS66WVE1M16EALL-ISSI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • IS67WV51216DBLL - 8Mb LOW VOLTAGE ULTRA LOW POWER PSEUDO CMOS STATIC RAM (Integrated Silicon Solution)
  • IS6003 - OPTICALLY COUPLED BILATERAL SWITCH NON-ZERO CROSSING TRIAC (ETC)
  • IS6005 - OPTICALLY COUPLED BILATERAL SWITCH NON-ZERO CROSSING TRIAC (ETC)
  • IS6010 - OPTICALLY COUPLED BILATERAL SWITCH NON-ZERO CROSSING TRIAC (ETC)
  • IS6015 - OPTICALLY COUPLED BILATERAL SWITCH NON-ZERO CROSSING TRIAC (ETC)
  • IS6030 - OPTICALLY COUPLED BILATERAL SWITCH NON-ZERO CROSSING TRIAC (ETC)
  • IS605 - (IS605 / IS606) SCR-OUTPUT OPTOCOUPLER (Isocom Components)
  • IS6051 - LOW INPUT CURRENT INFRA-RED EMITTING DIODE & LIGHT ACTIVATED SCR (Isocom Components)
  • IS606 - (IS605 / IS606) SCR-OUTPUT OPTOCOUPLER (Isocom Components)
  • IS607 - (IS607 / IS608) OPTICALLY COUPLED BILATERAL SWITCH NON-ZERO CROSSING TRIAC (Isocom Components)
Other Datasheets by ISSI

Full PDF Text Transcription

Click to expand full text

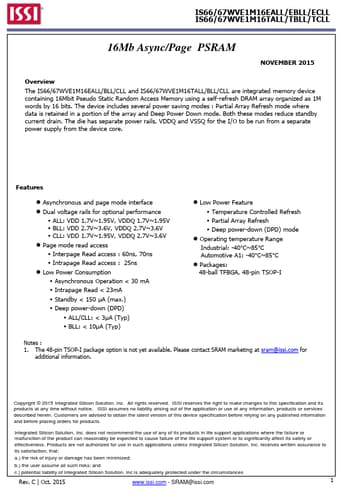

IS66/67WVE1M16EALL/EBLL/ECLL IS66/67WVE1M16TALL/TBLL/TCLL 16Mb Async/Page PSRAM NOVEMBER 2015 Overview The IS66/67WVE1M16EALL/BLL/CLL and IS66/67WVE1M16TALL/BLL/CLL are integrated memory device containing 16Mbit Pseudo Static Random Access Memory using a self-refresh DRAM array organized as 1M words by 16 bits. The device includes several power saving modes : Partial Array Refresh mode where data is retained in a portion of the array and Deep Power Down mode. Both these modes reduce standby current drain. The die has separate power rails, VDDQ and VSSQ for the I/O to be run from a separate power supply from the device core. Features  Asynchronous and page mode interface  Dual voltage rails for optional performance  ALL: VDD 1.7V~1.95V, VDDQ 1.7V~1.95V  BLL: VDD 2.7V~3.6V, VDDQ 2.
