IS65WV10248EALL, IS62WV10248EALL ULTRA LOW POWER CMOS STATIC RAM

IS65WV10248EALL Description

IS62WV10248EALL/BLL IS65WV10248EALL/BLL 1Mx8 LOW VOLTAGE, ULTRA LOW POWER CMOS STATIC RAM NOVEMBER 2014 KEY .
The ISSI IS62WV10248EALL/ IS62WV10248EBLL are high-speed, 8M bit static RAMs organized as 1M words by 8 bits.

IS65WV10248EALL Features

* High-speed access time: 45ns, 55ns
* CMOS low power operation
* 36 mW (typical) operating
* 12 µW (typical) CMOS standby
* TTL compatible interface levels
* Single power supply
* 1.65V-2.2V VDD (62/65WV10248EALL)
* 2.2V-3.6V VDD (62/65WV10248EBLL)

IS65WV10248EALL Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS65WV10248EALL, IS62WV10248EALL. Please refer to the document for exact specifications by model.

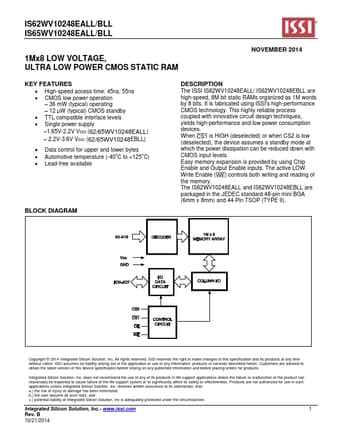

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS65WV10248EALL, IS62WV10248EALL
Manufacturer
ISSI
File Size
678.18 KB
Datasheet
IS62WV10248EALL-ISSI.pdf
Description
ULTRA LOW POWER CMOS STATIC RAM
Note
This datasheet PDF includes multiple part numbers: IS65WV10248EALL, IS62WV10248EALL.
Please refer to the document for exact specifications by model.
