IS64WV6416EEBLL, IS61WV6416EEBLL 64K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM

IS64WV6416EEBLL Description

IS61WV6416EEBLL IS64WV6416EEBLL 64K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM WITH ECC MARCH 2020 .
The ISSI IS61/64WV6416EEBLL is a high-speed, 1,048,576-bit static RAMs organized as 65,536 words by 16 bits.

IS64WV6416EEBLL Features

* High-speed access time: 8, 10 ns
* Low Active Power: 85 mW (typical)
* Low Standby Power: 7 mW (typical) CMOS standby
* Single power supply
* Fully static operation: no clock or refresh required
* Three state outputs
* Data control for upper

IS64WV6416EEBLL Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS64WV6416EEBLL, IS61WV6416EEBLL. Please refer to the document for exact specifications by model.

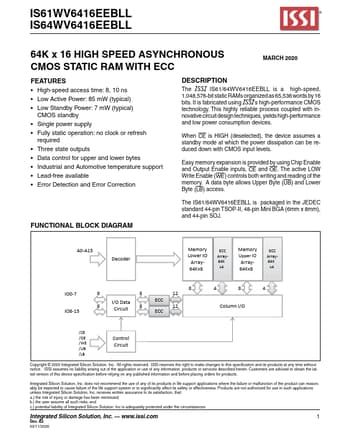

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS64WV6416EEBLL, IS61WV6416EEBLL
Manufacturer
ISSI
File Size
636.02 KB
Datasheet
IS61WV6416EEBLL-ISSI.pdf
Description
64K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM
Note
This datasheet PDF includes multiple part numbers: IS64WV6416EEBLL, IS61WV6416EEBLL.
Please refer to the document for exact specifications by model.
