IS64WV6416DBLS, IS61WV6416DALL 64K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM

IS64WV6416DBLS Description

IS61WV6416DALL/DALS IS61WV6416DBLL/DBLS IS64WV6416DBLL/DBLS 64K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM MARCH 2020 .
The ISSI IS61WV6416DAxx/DBxx and IS64WV6416DBxx are high-speed, 1,048,576-bit static RAMs organized as 65,536 words by 16 bits.

IS64WV6416DBLS Features

* HIGH SPEED: (IS61/64WV6416DALL/DBLL)
* High-speed access time: 8, 10, 12, 20 ns
* Low Active Power: 135 mW (typical)
* Low Standby Power: 12 µW (typical) CMOS standby LOW POWER: (IS61/64WV6416DALS/DBLS)
* High-speed access time: 25, 35 ns
* Low Active Power: 5

IS64WV6416DBLS Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS64WV6416DBLS, IS61WV6416DALL. Please refer to the document for exact specifications by model.

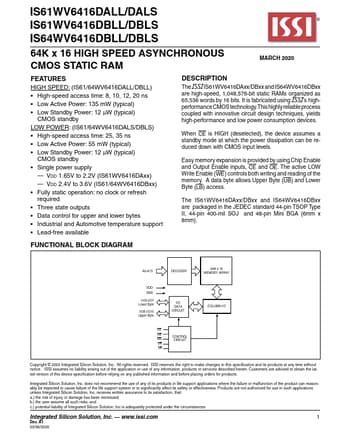

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS64WV6416DBLS, IS61WV6416DALL
Manufacturer
ISSI
File Size
657.52 KB
Datasheet
IS61WV6416DALL-ISSI.pdf
Description
64K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM
Note
This datasheet PDF includes multiple part numbers: IS64WV6416DBLS, IS61WV6416DALL.
Please refer to the document for exact specifications by model.
