IS64WV25616BLL, IS61WV25616ALL - 256K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM

ISSI

📥 Download Datasheet

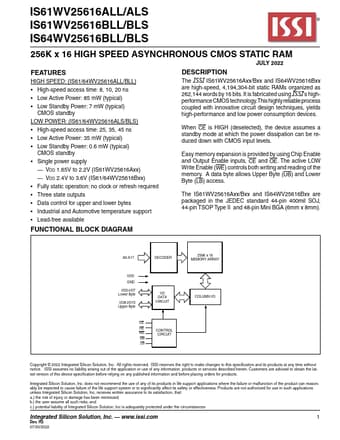

IS64WV25616BLL Datasheet Preview — This datasheet PDF includes multiple part numbers: IS64WV25616BLL, IS61WV25616ALL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS64WV25616BLL, IS61WV25616ALL
Manufacturer	ISSI
File Size	333.17 KB
Description	256K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM
Datasheet	IS61WV25616ALL_ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS64WV25616BLL, IS61WV25616ALL. Please refer to the document for exact specifications by model.

IS64WV25616BLL Product details

Description

The ISSI IS61WV25616Axx/Bxx and IS64WV25616Bxx are high-speed, 4,194,304-bit static RAMs organized as 262,144 words by 16 bits.It is fabricated using ISSI's high- performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices.When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Easy memory expansion is provi

Features

HIGH SPEED: (IS61/64WV25616ALL/BLL).
High-speed access time: 8, 10, 20 ns.
Low Active Power: 85 mW (typical).
Low Standby Power: 7 mW (typical) CMOS standby LOW POWER: (IS61/64WV25616ALS/BLS).
High-speed access time: 25, 35, 45 ns.
Low Active Power: 35 mW (typical).
Low Standby Power: 0.6 mW (typical) CMOS standby.
Single power supply.
Vdd 1.65V to 2.2V (IS61WV25616Axx).
Vdd 2.4V to 3.6V (IS61/64WV25616Bxx).
