IS61QDP2B21M18A1, IS61QDP2B21M18A - 18Mb QUADP (Burst 2) Synchronous SRAM

Name: IS61QDP2B21M18A1
SKU: IS61QDP2B21M18A1-1014050

ISSI

The IS61QDP2B21M18A1 by ISSI is a 18Mb QUADP (Burst 2) Synchronous SRAM. Below is the official datasheet preview.

Datasheet Details

Part number	IS61QDP2B21M18A1, IS61QDP2B21M18A
Manufacturer	ISSI
File Size	611.89 KB
Description	18Mb QUADP (Burst 2) Synchronous SRAM
Datasheet	IS61QDP2B21M18A-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS61QDP2B21M18A1, IS61QDP2B21M18A. Please refer to the document for exact specifications by model.

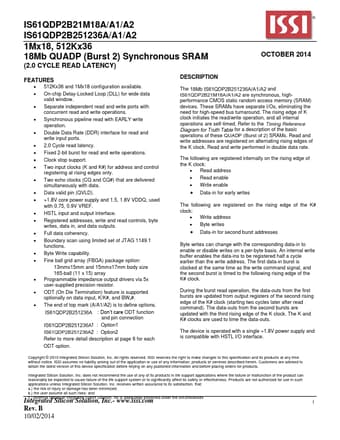

Additional preview pages of the IS61QDP2B21M18A1 datasheet.

at page 6 for each ODT option.

512Kx36 and 1Mx18 configuration available.
On-chip Delay-Locked Loop (DLL) for wide data valid window.
Separate independent read and write ports with concurrent read and write operations.
Synchronous pipeline read with EARLY write operation.
Double Data Rate (DDR) interface for read and write input ports.
2.0 Cycle read latency.
Fixed 2-bit burst for read and write operations.
Clock stop support.
Two input clocks (K and K#) for address and co.
