IS46LD32320A, IS46LD16640A 1Gb Mobile LPDDR2 S4 SDRAM

IS46LD32320A Description

IS43/46LD16640A IS43/46LD32320A 1Gb (x16, x32) Mobile LPDDR2 S4 SDRAM AUGUST 2014 .
The IS43/46LD16640A/32320A is 1,073,741,824 bits CMOS Mobile Double Data Rate Synchronous DRAMs organized as 8 banks (S4).

IS46LD32320A Features

* Low-voltage Core and I/O Power Supplies VDD2 = 1.14-1.30V, VDDCA/VDDQ = 1.14-1.30V, VDD1 = 1.70-1.95V
* High Speed Un-terminated Logic(HSUL_12) I/O Interface
* Clock Frequency Range : 10MHz to 400MHz (data rate range : 20Mbps to 800 Mbps per I/O)
* Four-bit Pre-

IS46LD32320A Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS46LD32320A, IS46LD16640A. Please refer to the document for exact specifications by model.

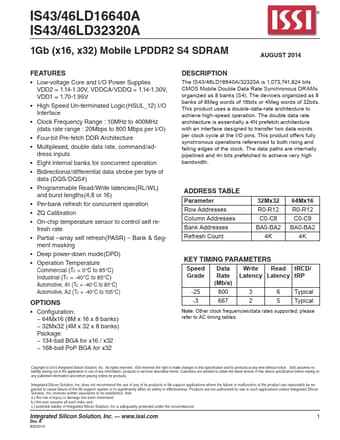

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS46LD32320A, IS46LD16640A
Manufacturer
ISSI
File Size
4.46 MB
Datasheet
IS46LD16640A-ISSI.pdf
Description
1Gb Mobile LPDDR2 S4 SDRAM
Note
This datasheet PDF includes multiple part numbers: IS46LD32320A, IS46LD16640A.
Please refer to the document for exact specifications by model.
