IS46LD32320C - 1Gb Mobile LPDDR2 S4 SDRAM

Download the IS46LD32320C datasheet PDF (IS43LD16640C included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 1gb mobile lpddr2 s4 sdram.

Description

The IS43/46LD16640C/32320C is 1Gbit CMOS LPDDR2 DRAM.

The device is organized as 8 banks of 8Meg words of 16bits or 4Meg words of 32bits.

This product uses a double-data-rate architecture to achieve high-speed operation.

Features

  • Low-voltage Core and I/O Power Supplies VDD2 = 1.14-1.30V, VDDCA/VDDQ = 1.14-1.30V, VDD1 = 1.70-1.95V.
  • High Speed Un-terminated Logic(HSUL_12) I/O Interface.
  • Clock Frequency Range : 10MHz to 533MHz (data rate range : 20Mbps to 1066Mbps per I/O).
  • Four-bit Pre-fetch DDR Architecture.
  • Multiplexed, double data rate, command/address inputs.
  • Eight internal banks for concurrent operation.
  • Bidirectional/differential data strobe per byte of.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS43LD16640C-ISSI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • IS46R16160F - 256Mb DDR SDRAM (Integrated Silicon Solution)
  • IS46R16320D - 16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM (Integrated Silicon Solution)
  • IS46R16320E - 512Mb DDR SDRAM (Integrated Silicon Solution)
  • IS46R16800E - 128Mb DDR SDRAM (Integrated Silicon Solution)
  • IS46R32160D - 16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM (Integrated Silicon Solution)
  • IS46R32160E - 512Mb DDR SDRAM (Integrated Silicon Solution)
  • IS46R32400E - 128Mb DDR SDRAM (Integrated Silicon Solution)
  • IS46R32800F - 256Mb DDR SDRAM (Integrated Silicon Solution)
  • IS46R86400D - 16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM (Integrated Silicon Solution)
  • IS41C16100 - 1M x 16 (16-MBIT) DYNAMIC RAM WITH EDO PAGE MODE (Integrated Silicon Solution)
Other Datasheets by ISSI

Full PDF Text Transcription

Click to expand full text

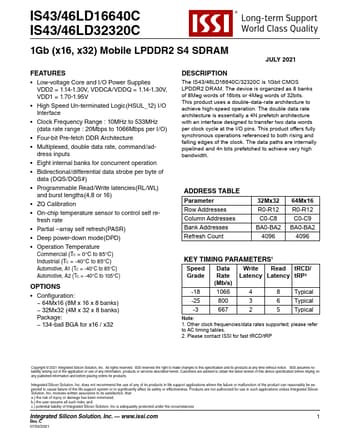

IS43/46LD16640C IS43/46LD32320C ® Long-term Support World Class Quality 1Gb (x16, x32) Mobile LPDDR2 S4 SDRAM JULY 2021 FEATURES • Low-voltage Core and I/O Power Supplies VDD2 = 1.14-1.30V, VDDCA/VDDQ = 1.14-1.30V, VDD1 = 1.70-1.
