IS46DR81280DL - 128Mx8 DDR2 DRAM

Download the IS46DR81280DL datasheet PDF. This datasheet also covers the IS46DR81280D variant, as both devices belong to the same 128mx8 ddr2 dram family and are provided as variant models within a single manufacturer datasheet.

Description

ISSI's 1Gb DDR2 SDRAM uses a double-data-rate architecture to achieve high-speed operation.

The double-data rate architecture is essentially a 4n-prefetch architecture, with an interface designed to transfer two data words per clock cycle at the I/O balls.

Features

  • Standard Voltage: Vdd and Vddq = 1.8V ±0.1V.
  • Low Voltage (L): Vdd and Vddq = 1.5V ±0.075V.
  • SSTL_18-compatible for Standard Voltage.
  • SSTL_15-compatible for Low Voltage.
  • Double data rate interface: two data transfers per clock cycle.
  • Differential data strobe (DQS, DQS).
  • 4-bit prefetch architecture.
  • On chip DLL to align DQ and DQS transitions with CK.
  • 8 internal banks for concurrent operation.
  • Programmable CA.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS46DR81280D-ISSI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IS46R16160F 256Mb DDR SDRAM Integrated Silicon Solution
IS46R16320D 16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM Integrated Silicon Solution
IS46R16320E 512Mb DDR SDRAM Integrated Silicon Solution
IS46R16800E 128Mb DDR SDRAM Integrated Silicon Solution
IS46R32160D 16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM Integrated Silicon Solution

Other Datasheets by ISSI (now Infineon)

Part Number Description
IS46DR81280D 128Mx8 DDR2 DRAM
IS46DR81280B 1Gb DDR2 SDRAM
IS46DR81280C DDR2 DRAM
IS46DR82560C DDR2 DRAM
IS46DR83200B DDR2 DRAM

Full PDF Text Transcription

Click to expand full text

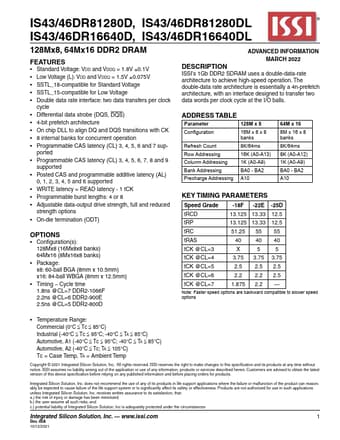

IS43/46DR81280D, IS43/46DR81280DL IS43/46DR16640D, IS43/46DR16640DL 128Mx8, 64Mx16 DDR2 DRAM FEATURES • Standard Voltage: Vdd and Vddq = 1.8V ±0.1V • Low Voltage (L): Vdd and Vddq = 1.5V ±0.
