IS46DR81280B - 1Gb DDR2 SDRAM

ISSI

📥 Download Datasheet

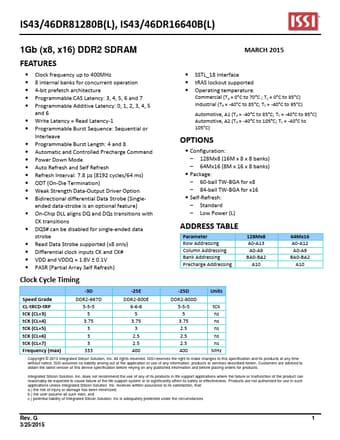

IS46DR81280B Datasheet Preview — Preview of IS46DR81280B PDF

Datasheet Details

Part number	IS46DR81280B
Manufacturer	ISSI
File Size	1.04 MB
Description	1Gb DDR2 SDRAM
Datasheet	IS46DR81280B-ISSI.pdf

IS46DR81280B Product details

Description

DDR2 SDRAM (128Mx8) TW-BGA Ball-out (Top-View) (8.00mm x 10.50mm) Symbol CK, CK# CKE CS# RAS#,CAS#,WE# A[13:0] BA[2:0] DQ[7:0] DQS, DQS# RDQS, RDQS# DM VDD VSS VDDQ VSSQ VREF VDDL VSSDL ODT NC Description Input clocks Clock enable Chip Select Command control pins Address Bank Address I/O Data Strobe Redundant Data Strobe Input data mask Supply voltage Ground DQ power supply DQ ground Reference voltage DLL power supply DLL ground On Die Termination Enable No connect Rev.G 3/25/2015 Notes: 1.

Features

Clock frequency up to 400MHz.
8 internal banks for concurrent operation.
4-bit prefetch architecture.
Programmable CAS Latency: 3, 4, 5, 6 and 7.
Programmable Additive Latency: 0, 1, 2, 3, 4, 5 and 6.
Write Latency = Read Latency-1.
Programmable Burst Sequence: Sequential or Interleave.
Programmable Burst Length: 4 and 8.
Automatic and Controlled Precharge Command.
Power Down Mode.
Auto Refresh and Self Refresh.
Refresh Interval: 7.8 .
