IS45SM32800E, IS42SM32800E 2M x 32Bits x 4Banks Mobile Synchronous DRAM

IS45SM32800E Description

IS42/45SM/RM/VM32800E 2M x 32Bits x 4Banks Mobile Synchronous DRAM .
These IS42/45SM/RM/VM32800E are mobile 268,435,456 bits CMOS Synchronous DRAM organized as 4 banks of 2,097,152 words x 32 bits.

IS45SM32800E Features

* JEDEC standard 3.3V, 2.5V, 1.8V power supply.
* Auto refresh and self refresh.
* All pins are compatible with LVCMOS interface.
* 4K refresh cycle / 64ms.
* Programmable Burst Length and Burst Type. - 1, 2, 4, 8 or Full Page for Sequential Burst. - 4 or 8 for In

IS45SM32800E Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS45SM32800E, IS42SM32800E. Please refer to the document for exact specifications by model.

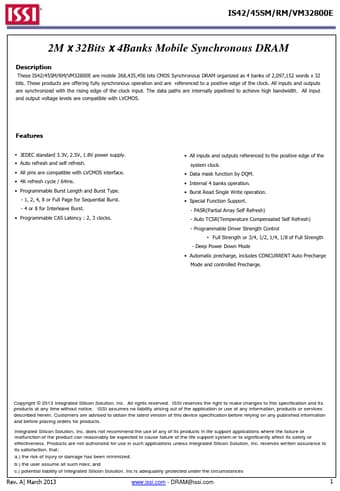

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS45SM32800E, IS42SM32800E
Manufacturer
ISSI
File Size
588.96 KB
Datasheet
IS42SM32800E-ISSI.pdf
Description
2M x 32Bits x 4Banks Mobile Synchronous DRAM
Note
This datasheet PDF includes multiple part numbers: IS45SM32800E, IS42SM32800E.
Please refer to the document for exact specifications by model.
