IS45SM32100D, IS42VM32100D 512K x 32Bits x 2Banks Low Power Synchronous DRAM

IS45SM32100D Description

IS42/45SM/RM/VM32100D 512K x 32Bits x 2Banks Low Power Synchronous DRAM .
These IS42SM/RM/VM32100D are low power 33,554,432 bits CMOS Synchronous DRAM organized as 2 banks of 524,288 words x 32 bits.

IS45SM32100D Features

* JEDEC standard 3.3V, 2.5V, 1.8V power supply.
* Auto refresh and self refresh.
* All pins are compatible with LVCMOS interface.
* 4K refresh cycle / 64ms.
* Programmable Burst Length and Burst Type. - 1, 2, 4, 8 or Full Page for Sequential Burst. - 4 or 8 for In

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS45SM32100D, IS42VM32100D. Please refer to the document for exact specifications by model.

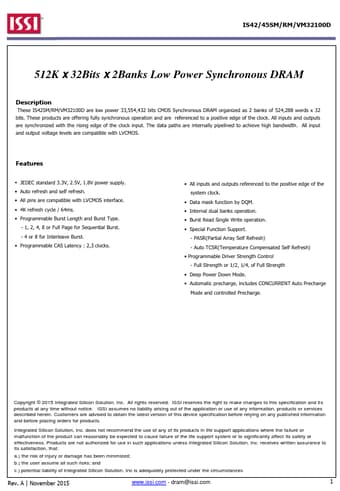

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS45SM32100D, IS42VM32100D
Manufacturer
ISSI
File Size
553.43 KB
Datasheet
IS42VM32100D-ISSI.pdf
Description
512K x 32Bits x 2Banks Low Power Synchronous DRAM
Note
This datasheet PDF includes multiple part numbers: IS45SM32100D, IS42VM32100D.
Please refer to the document for exact specifications by model.
