IS43DR86400E, IS46DR86400E DDR2 DRAM

IS43DR86400E Description

IS43/46DR86400E IS43/46DR16320E 64Mx8, 32Mx16 DDR2 DRAM .
ISSI's 512Mb DDR2 SDRAM uses a double-data-rate architecture to achieve high-speed operation.

IS43DR86400E Features

* Vdd = 1.8V ±0.1V, Vddq = 1.8V ±0.1V
* JEDEC standard 1.8V I/O (SSTL_18-compatible)
* Double data rate interface: two data transfers per clock cycle
* Differential data strobe (DQS, DQS)
* 4-bit prefetch architecture
* On chip DLL to align DQ and DQS

IS43DR86400E Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS43DR86400E, IS46DR86400E. Please refer to the document for exact specifications by model.

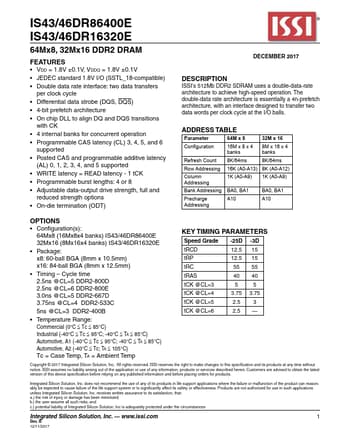

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS43DR86400E, IS46DR86400E
Manufacturer
ISSI
File Size
1.18 MB
Datasheet
IS46DR86400E-ISSI.pdf
Description
DDR2 DRAM
Note
This datasheet PDF includes multiple part numbers: IS43DR86400E, IS46DR86400E.
Please refer to the document for exact specifications by model.
