IS43DR86400D, IS43DR16320D DDR2 DRAM

IS43DR86400D Description

IS43/46DR86400D IS43/46DR16320D 64Mx8, 32Mx16 DDR2 DRAM .
ISSI's 512Mb DDR2 SDRAM uses a double-data-rate architecture to achieve high-speed operation.

IS43DR86400D Features

* Vdd = 1.8V ±0.1V, Vddq = 1.8V ±0.1V
* JEDEC standard 1.8V I/O (SSTL_18-compatible)
* Double data rate interface: two data transfers per clock cycle
* Differential data strobe (DQS, DQS)
* 4-bit prefetch architecture
* On chip DLL to align DQ and DQS

IS43DR86400D Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS43DR86400D, IS43DR16320D. Please refer to the document for exact specifications by model.

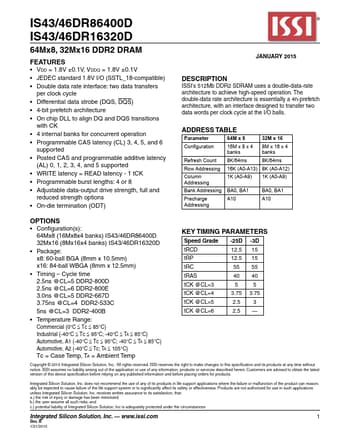

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS43DR86400D, IS43DR16320D
Manufacturer
ISSI
File Size
1.07 MB
Datasheet
IS43DR16320D-ISSI.pdf
Description
DDR2 DRAM
Note
This datasheet PDF includes multiple part numbers: IS43DR86400D, IS43DR16320D.
Please refer to the document for exact specifications by model.
