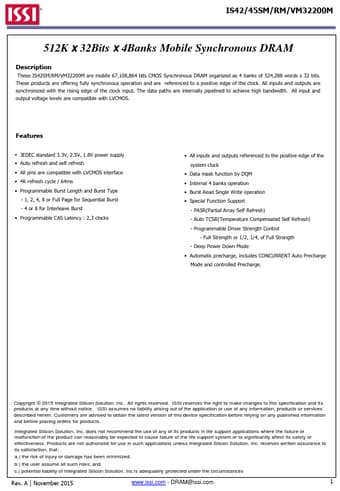

IS42SM32200M, IS42VM32200M - 512K x 32Bits x 4Banks Mobile Synchronous DRAM

Datasheet Details

Part number	IS42SM32200M, IS42VM32200M
Manufacturer	ISSI
File Size	856.23 KB
Description	512K x 32Bits x 4Banks Mobile Synchronous DRAM
Datasheet	IS42VM32200M-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS42SM32200M, IS42VM32200M. Please refer to the document for exact specifications by model.

These IS42SM/RM/VM32200M are mobile 67,108,864 bits CMOS Synchronous DRAM organized as 4 banks of 524,288 words x 32 bits.

JEDEC standard 3.3V, 2.5V, 1.8V power supply.
Auto refresh and self refresh.
All pins are compatible with LVCMOS interface.
4K refresh cycle / 64ms.
Programmable Burst Length and Burst Type - 1, 2, 4, 8 or Full Page for Sequential Burst - 4 or 8 for Interleave Burst.
Programmable CAS Latency : 2,3 clocks.
All inputs and outputs referenced to the positive edge of the system clock.
Data mask function by DQM.
Internal 4.
