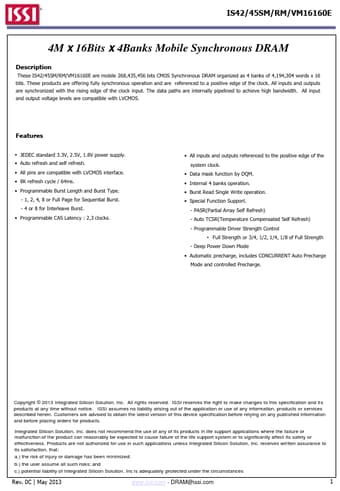

IS42RM16160E, IS42SM16160E - 4M x 16Bits x 4Banks Mobile Synchronous DRAM

ISSI

Datasheet Details

Part number	IS42RM16160E, IS42SM16160E
Manufacturer	ISSI
File Size	554.56 KB
Description	4M x 16Bits x 4Banks Mobile Synchronous DRAM
Datasheet	IS42SM16160E-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS42RM16160E, IS42SM16160E. Please refer to the document for exact specifications by model.

These IS42/45SM/RM/VM16160E are mobile 268,435,456 bits CMOS Synchronous DRAM organized as 4 banks of 4,194,304 words x 16 bits.

JEDEC standard 3.3V, 2.5V, 1.8V power supply.
Auto refresh and self refresh.
All pins are compatible with LVCMOS interface.
8K refresh cycle / 64ms.
Programmable Burst Length and Burst Type. - 1, 2, 4, 8 or Full Page for Sequential Burst. - 4 or 8 for Interleave Burst.
Programmable CAS Latency : 2,3 clocks.
All inputs and outputs referenced to the positive edge of the system clock.
Data mask function by DQM.
I.
