IS42R83200D 256-MBIT SYNCHRONOUS DRAM

IS42R83200D Description

IS42R83200D, IS42R16160D IS45R83200D, IS45R16160D 32Meg x 8, 16Meg x16 256-MBIT SYNCHRONOUS DRAM MARCH 2010 .
A0-A12 Row Address Input A0-A9 Column Address Input BA0, BA1 Bank Select Address DQ0 to DQ7 Data I/O CLK System Clock Input CKE.

IS42R83200D Features

* Clock frequency: 133, 100 MHz
* Fully synchronous; all signals referenced to a positive clock edge
* Internal bank for hiding row access/precharge
* Single Power supply: 2.5V + 0.2V
* LVTTL interface
* Programmable burst length
* (1, 2

📥 Download Datasheet

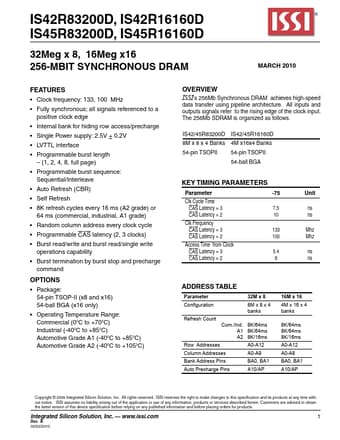

Preview of IS42R83200D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS42R83200D
Manufacturer
ISSI
File Size
926.82 KB
Datasheet
IS42R83200D-ISSI.pdf
Description
256-MBIT SYNCHRONOUS DRAM
