Description

IS31AP4915 20VP-P CHARGE PUMP CERAMIC SPEAKER DRIVER September 2012 GENERAL .
The IS31AP4915 features a mono power amplifier with an integrated charge-pump power supply specifically designed to drive the high capacitance of a ce.

📥 Download Datasheet

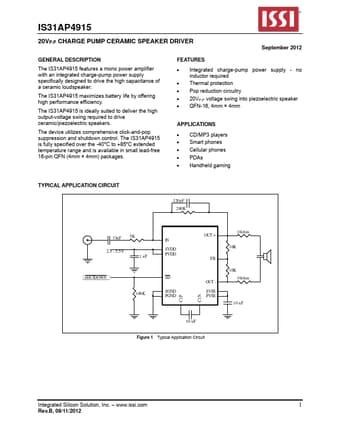

IS31AP4915 Datasheet Preview — Preview of IS31AP4915 PDF

Datasheet Specifications

Part number: IS31AP4915
Manufacturer: ISSI
File Size: 388.92 KB
Datasheet: IS31AP4915_ISSI.pdf
Description: 20VP-P CHARGE PUMP CERAMIC SPEAKER DRIVER

Features

* a mono power amplifier with an integrated charge-pump power supply specifically designed to drive the high capacitance of a ceramic loudspeaker. The IS31AP4915 maximizes battery life by offering high performance efficiency. The IS31AP4915 is ideally suited to deliver the high output-voltage swing re

Applications

* CD/MP3 players Smart phones Cellular phones PDAs Handheld gaming TYPICAL APPLICATION CIRCUIT 220pF 200K http://www. DataSheet4U. net/ 33nF 5K OUT + IN SVDD PVDD FB 10K 10K 10ohm 2.5 - 5.5V 1 uF SHUTDOWN SD OUT C1N 100K SGND PGND SVSS PVSS 10ohm C1P 10 uF 10 u
