Description

IS31AP4913 3D AND BASS ENHANCEMENT STEREO HEADPHONE DRIVER December 2011 GENERAL .
The IS31AP4913 is a stereo headphone driver designed to allow the removal of the output DC-blocking capacitors for reduced component count and cost.

📥 Download Datasheet

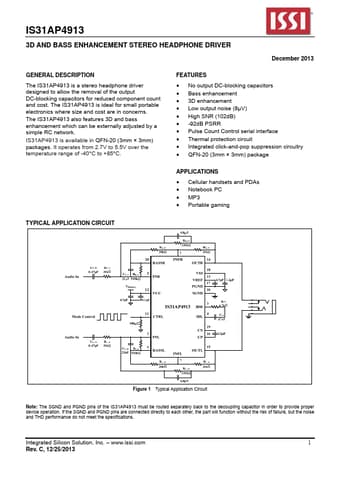

IS31AP4913 Datasheet Preview — Preview of IS31AP4913 PDF

Datasheet Specifications

Part number: IS31AP4913
Manufacturer: ISSI
File Size: 313.56 KB
Datasheet: IS31AP4913_ISSI.pdf
Description: 3D AND BASS ENHANCEMENT STEREO HEADPHONE DRIVER

Features

* 3D and bass enhancement which can be externally adjusted by a simple RC network. IS31AP4913 is available in QFN-20 (3mm × 3mm) packages. It operates from 2.7V to 5.5V over the temperature range of -40°C to +85°C. FEATURES
* No output DC-block

Applications

* TYPICAL APPLICATION CIRCUIT 6.8pF RR_F3 120k Cellular handsets and PDAs Notebook PC MP3 Portable gaming RR_F1 20k 1 http://www. DataSheet4U. net/ RR_F2 20k 20 CR_IN 0.47 F RR_IN 30k BASSR INFR OUTR VSS VREF PGND 14 18 13 4.7 F 2.2 F Audio In CR_B RR_B 22nF 510k 2 I
