IS31AP4833 TREBLE AND BASS CONTROL

IS31AP4833 Description

IS31AP4833 TREBLE AND BASS CONTROL WITH 3D ENHANCEMENT AUDIO POWER DRIVER August 2012 GENERAL .
The IS31AP4833 is a treble and bass control with 3D enhancement audio power driver.

IS31AP4833 Features

* 3D sound circuitry which can be externally adjusted via a simple RC network. The IS31AP4833 features a 13 steps tone control (-12dB ~ +12dB, 2dB/step) and a 29 steps volume control (mute, -42dB ~ +12dB, 2dB/step) for the headphone and stereo outputs. The volume and tone are controlled through an I2C

IS31AP4833 Applications

* Cell phones, PDA, MP4, PMP Portable and desktop computers Desktops audio system Multimedia monitors TYPICAL APPLICATION CIRCUIT http://www. DataSheet4U. net/ Figure 1 Typical Application Circuit Integrated Silicon Solution, Inc.
* www. issi. com Rev. A, 07/22/2012 1

📥 Download Datasheet

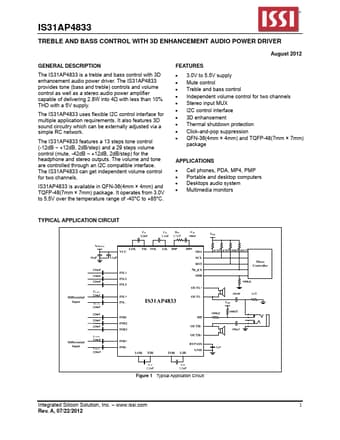

Preview of IS31AP4833 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS31AP4833
Manufacturer
ISSI
File Size
550.50 KB
Datasheet
IS31AP4833_ISSI.pdf
Description
TREBLE AND BASS CONTROL
