IS25WE512M, IS25LE512M 512Mb SERIAL FLASH MEMORY

IS25WE512M Description

IS25LE512M IS25WE512M 512Mb SERIAL FLASH MEMORY 133/112MHZ MULTI I/O SPI & QUAD I/O QPI DTR INTERFACE WITH ON-CHIP ECC 512Mb SERIAL FLASH MEMORY 133/.
The IS25LE512M and IS25WE512M Serial Flash memory offers a versatile storage solution with high flexibility and performance in a simplified pin count.

IS25WE512M Features

* Industry Standard Serial Interface - IS25LE512M: 512Mbit/64Mbyte - IS25WE512M: 512Mbit/64Mbyte - 3 or 4 Byte Addressing Mode - Supports Standard SPI, Fast, Dual, Dual I/O, Quad, Quad I/O, SPI DTR, Dual I/O DTR, Quad I/O DTR, and QPI - Software & Hardware Reset - Supports Serial Flash Disco

IS25WE512M Applications

* requiring solid data retention. Automatic ECC Protection (1-bit Error Correction) applies per every 64-bit to maximize reliability. When ECC is ON, the device allows only single programming operation to each 8-byte ECC boundary between erase operations. Integrated Silicon Solution, Inc. - www. issi. c

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS25WE512M, IS25LE512M. Please refer to the document for exact specifications by model.

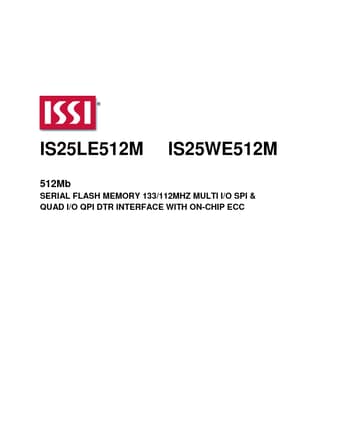

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS25WE512M, IS25LE512M
Manufacturer
ISSI
File Size
2.40 MB
Datasheet
IS25LE512M-ISSI.pdf
Description
512Mb SERIAL FLASH MEMORY
Note
This datasheet PDF includes multiple part numbers: IS25WE512M, IS25LE512M.
Please refer to the document for exact specifications by model.
