IS25WD040, IS25WD020 2 Mbit / 4 Mbit Single Operating Voltage Serial Flash Memory

IS25WD040 Description

IS25WD020/040 2 Mbit / 4 Mbit Single Operating Voltage Serial Flash Memory With 80 MHz Dual-Output SPI Bus Interface .
The IS25WD020/040 are 2 Mbit / 4Mbit Serial Peripheral Interface (SPI) Flash memories, providing single- or dual-output.

IS25WD040 Features

* Single Power Supply Operation - Low voltage range: 1.65 V
* 1.95 V
* Memory Organization - IS25WD020: 256K x 8 (2 Mbit) - IS25WD040: 512K x 8 (4 Mbit)
* Cost Effective Sector/Block Architecture - 2Mb : Uniform 4KByte sectors / Four uniform 64KByte blocks - 4Mb : Un

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS25WD040, IS25WD020. Please refer to the document for exact specifications by model.

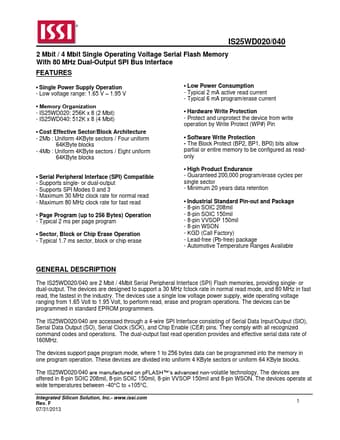

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS25WD040, IS25WD020
Manufacturer
ISSI
File Size
669.81 KB
Datasheet
IS25WD020-ISSI.pdf
Description
2 Mbit / 4 Mbit Single Operating Voltage Serial Flash Memory
Note
This datasheet PDF includes multiple part numbers: IS25WD040, IS25WD020.
Please refer to the document for exact specifications by model.
