TLP521-2, TLP521 Optocoupler

TLP521-2 Description

TLP521, TLP521-2, TLP521-4 .
The TLP521, TLP521-2 and TLP521-4 series of optically coupled isolator consist of an infrared light emitting diode and an NPN silicon photo transistor.

TLP521-2 Features

* AC Isolation Voltage 5300VRMS
* CTR Selections Available
* Wide Operating Temperature Range -30°C to +100°C
* Lead Free and RoHS Compliant
* UL File E91231 Package Code “EE”

TLP521-2 Applications

* Computer Terminals
* Industrial System Controllers
* Measuring Instruments
* Signal Transmission between Systems of Different Potentials and Impedances ORDER INFORMATION
* Add X after PN for VDE Approval
* Add G after PN for 10mm lead spacing

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TLP521-2, TLP521. Please refer to the document for exact specifications by model.

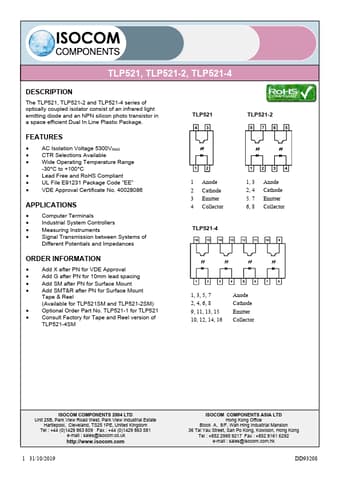

datasheet Preview Page 2 datasheet Preview Page 3
