TLP5214A Photocouplers

TLP5214A Description

Photocouplers Infrared LED & Photo IC TLP5214A TLP5214A Isolated IGBT/Power MOSFET gate drive AC and brushless DC motor drives Industrial Inverters .

TLP5214A Applications

* This photocoupler is suitable for driving IGBT and power MOSFET used in inverter applications. The TLP5214A consists two infrared LEDs and two high-gain and high-speed ICs. They realize high current, high-speed output control and output fault status feedback.
* Peak output current: ±4.0 A

📥 Download Datasheet

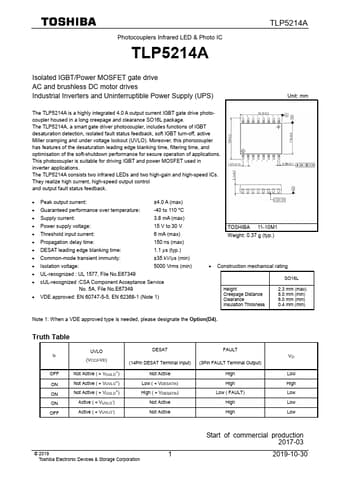

Preview of TLP5214A PDF
