ICPLM611 - AlGaAs light emitting diode and a high speed optical detector

ICPLM611 Description

ISOCOM COMPONENTS ICPLM611 .
The ICPLM611 consists of a high efficient AlGaAs light emitting diode and a high speed optical detector.

ICPLM611 Features

* an open collector Schottky clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 10 KV/us at 3.3V/5V operation. The device is in half pitch mini flat 5 pin package. FEATURES
* Half Pitch 1.27mm
* High Speed 15Mbit/s Typical

ICPLM611 Applications

* Line Receivers
* Data Communication
* High Speed Logic Ground Isolation
* Pulse Tr

📥 Download Datasheet

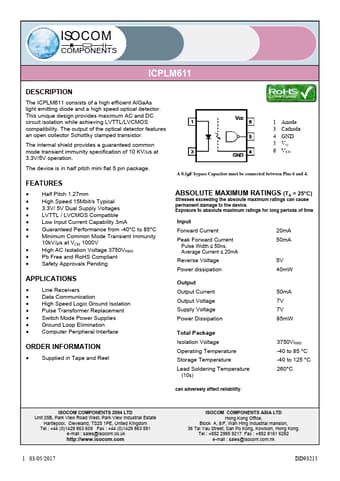

Preview of ICPLM611 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICPLM611
Manufacturer
ISOCOM
File Size
3.76 MB
Datasheet
ICPLM611-ISOCOM.pdf
Description
AlGaAs light emitting diode and a high speed optical detector
