ICPLM600 - Photo Detector

ICPLM600 Description

ISOCOM COM- ICPLM600, ICPLM601 .
The ICPLM600 and ICPLM601 devices each consists of an infrared emitting diode optically coupled to a high speed integrated photo detector logic gate.

ICPLM600 Features

* High speed 10Mbit/s
* Half Pitch 1.27mm
* Common Mode Transient Immunity 5kV/μs min. (ICPLM601)
* High AC Isolation Voltage 3750VRMS
* Guaranteed Performance from -40°C to 85°C
* Pb Free and RoHS Compliant
* Safety Approvals Pending APPLICATI

ICPLM600 Applications

* Line Receivers, Data Communication
* LSTTL to TTL, LSTTL or 5V CMOS
* Data Multiplexing
* Pulse Transformer Replacement
* Switch Mode Power Supplies
* Ground Loop Elimination
* Computer Peripheral Interface ORDER INFORMATION
* Availab

📥 Download Datasheet

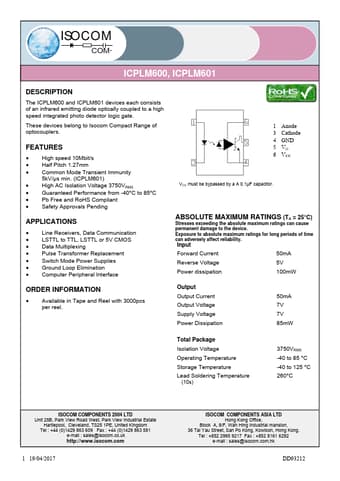

Preview of ICPLM600 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICPLM600
Manufacturer
ISOCOM
File Size
604.46 KB
Datasheet
ICPLM600-ISOCOM.pdf
Description
Photo Detector
