ISP824, ISP814 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

ISOCOM COMPONENTS

The ISP824 by ISOCOM COMPONENTS is a PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS. Below is the official datasheet preview.

📥 Download Datasheet

ISP824 PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS by ISOCOM COMPONENTS - Datasheet Preview — Official preview page of the **ISP824** PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS datasheet (ISOCOM COMPONENTS).

Datasheet Details

Part number	ISP824, ISP814
Manufacturer	ISOCOM COMPONENTS
File Size	67.69 KB
Description	PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
Datasheet	ISP814-ISOCOMCOMPONENTS.pdf
Note	This datasheet PDF includes multiple part numbers: ISP824, ISP814. Please refer to the document for exact specifications by model.

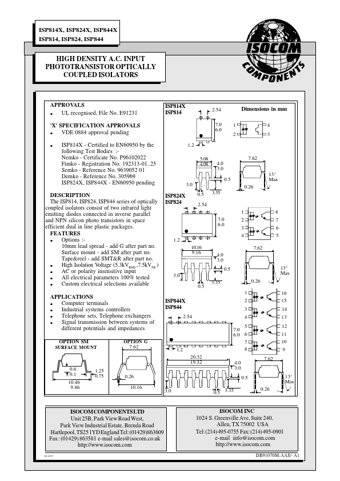

Additional preview pages of the ISP824 datasheet.

ISP824 Product details

Description

The ISP814, ISP824, ISP844 series of optically coupled isolators consist of two infrared light emitting diodes connected in inverse parallel and NPN silicon photo transistors in space efficient dual in line plastic packages.

Features

l Options :- 10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l AC or polarity insensitive input l All electrical parameters 100% tes.
