CFPS-68 - Crystal Clock Oscillator

📥 Download Datasheet

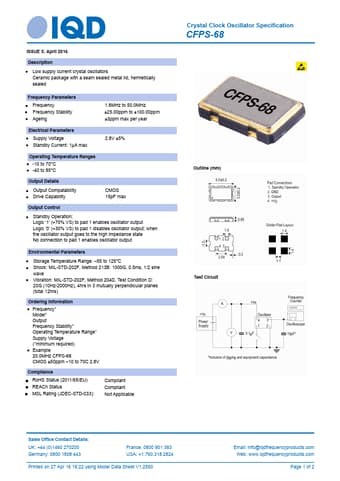

Preview of CFPS-68 PDF
datasheet Preview Page 2

Datasheet Details

Part number CFPS-68
Manufacturer IQD
File Size 397.87 KB
Description Crystal Clock Oscillator
Datasheet download datasheet CFPS-68-IQD.pdf

CFPS-68 Product details

Description

Low supply current crystal oscillators Ceramic package with a seam sealed metal lid, hermetically sealed Frequency Parameters Frequency Frequency Stability Ageing 1.8MHz to 50.0MHz ±25.00ppm to ±100.00ppm ±3ppm max per year Electrical Parameters Supply Voltage Standby Current: 1μA max 2.8V ±5% Operating Temperature Ranges -10 to 70°C -40 to 85°C Output Details Output Compatability Drive Capability CMOS 15pF max Output Control Standby Operation: Logic ‘1’ (>70% VS) to pad 1 enables oscill
