The CFPS-107 by IQD is a Crystal Clock Oscillator. Below is the official datasheet preview.
| Part number | CFPS-107 |
|---|---|
| Manufacturer | IQD |
| File Size | 266.76 KB |
| Description | Crystal Clock Oscillator |
| Datasheet |

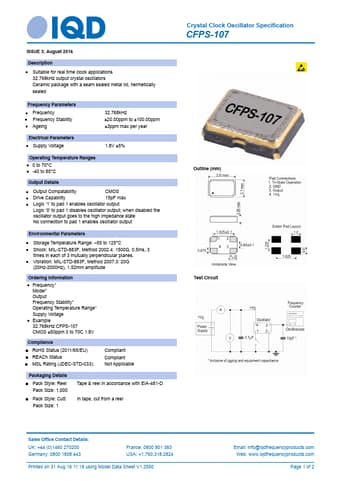

 CFPS-107-IQD.pdf
|
|
|
Suitable for real time clock applications 32.768kHz output crystal oscillators Ceramic package with a seam sealed metal lid, hermetically sealed Frequency Parameters Frequency Frequency Stability Ageing 32.768kHz ±20.00ppm to ±100.00ppm ±3ppm max per year Electrical Parameters Supply Voltage 1.8V ±5% Operating Temperature Ranges 0 to 70°C -40 to 85°C Output Details Output Compatability CMOS Drive Capability 15pF max Logic ‘1’ to pad 1 enables oscillator output Logic ‘0’ to pad 1 disa
