STW62NM60N N-Channel MOSFET

STW62NM60N Description

isc N-Channel Mosfet Transistor *.

STW62NM60N Features

* Drain Current ID= 65A@ TC=25℃
* Drain Source Voltage- : VDSS= 600V(Min)
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STW62NM60N Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage ±25 V ID Drain Current-continuous@ TC=25℃ 65 A IDM Pulse Drain Current 260 A Ptot Total Dissipation@TC=25℃ 450 W Tj Max. Ope

📥 Download Datasheet

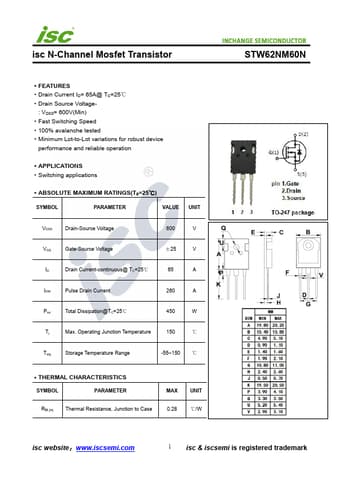

Preview of STW62NM60N PDF
datasheet Preview Page 2

Datasheet Details

Part number
STW62NM60N
Manufacturer
INCHANGE
File Size
370.92 KB
Datasheet
STW62NM60N-INCHANGE.pdf
Description
N-Channel MOSFET
