STP45NF06 N-Channel MOSFET

STP45NF06 Description

Isc N-Channel MOSFET Transistor *.

STP45NF06 Features

* Typical RDS(on)=0.022Ω
* With low gate drive requirements
* Easy to drive
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation INCHANGE Semiconductor STP45NF06

STP45NF06 Applications

* Solenold and relay dirvers
* DC-DC &DC-CAconverters
* Automotive environment
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±20 38 26 15

📥 Download Datasheet

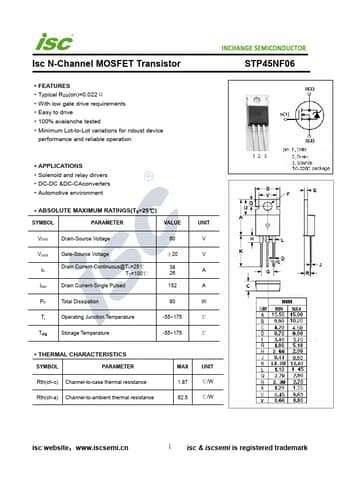

Preview of STP45NF06 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP45NF06
Manufacturer
INCHANGE
File Size
202.49 KB
Datasheet
STP45NF06-INCHANGE.pdf
Description
N-Channel MOSFET
