STF140N6F7 - N-Channel MOSFET

INCHANGE

The STF140N6F7 by INCHANGE is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

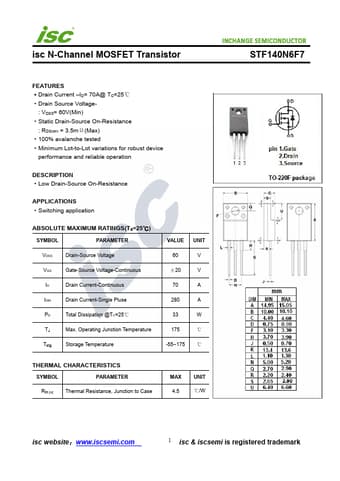

STF140N6F7 N-Channel MOSFET by INCHANGE - Datasheet Preview — Official preview page of the **STF140N6F7** N-Channel MOSFET datasheet (INCHANGE).

Datasheet Details

Part number	STF140N6F7
Manufacturer	INCHANGE
File Size	262.55 KB
Description	N-Channel MOSFET
Datasheet	STF140N6F7-INCHANGE.pdf
Additional preview pages of the STF140N6F7 datasheet.

STF140N6F7 Product details

Description

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 60 V ±20 V 70 A 280 A 33 W 175 ℃ -55~175 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Ju

Features

Drain Current.
ID= 70A@ TC=25℃.
Drain Source Voltage- : VDSS= 60V(Min).
Static Drain-Source On-Resistance : RDS(on) = 3.5mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
