STF14N80K5 N-channel Power MOSFET

These very high voltage N-channel Power MOSFET are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Table 1.

STF14N80K5 Features

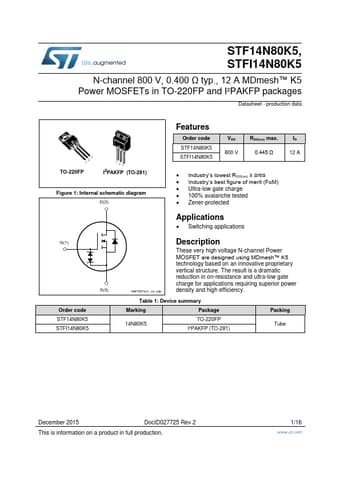

* Order code STF14N80K5 STFI14N80K5 VDS 800 V RDS(on) max. 0.445 Ω ID 12 A TO-220FP I2PAKFP (TO-281) Figure 1: Internal schematic diagram D(2)

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra-low gate charge

* 100% avalanche tested

* Zener-p
