R6004JNX - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

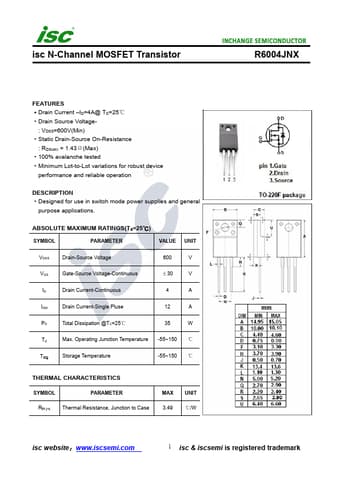

R6004JNX Datasheet Preview — Preview of R6004JNX PDF

Datasheet Details

Part number	R6004JNX
Manufacturer	INCHANGE
File Size	247.55 KB
Description	N-Channel MOSFET
Datasheet	R6004JNX-INCHANGE.pdf

R6004JNX Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 4 A IDM Drain Current-Single Pluse 12 A PD Total Dissipation @TC=25℃ 35 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resi

Features

Drain Current.
ID=4A@ TC=25℃.
Drain Source Voltage- : VDSS=600V(Min).
Static Drain-Source On-Resistance : RDS(on) = 1.43Ω(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
