R6000 - High Voltage Rectifiers

Features

  • — Low cost — Low leakage — Low forward voltage drop — High current capability — Easily cleaned with alcohol,Isopropanol and similar solvents — The plastic material carries U/L recognition 94V-0 Mechanical Data — Case:JEDEC DO--15,molded plastic — Terminals: Axial lead ,solderable per MIL- STD-202,Method 208 — Polarity: Color band denotes cathode — Weight: 0.014 ounces,0.39 grams — Mounting position: Any.

📥 Download Datasheet

Datasheet Details

Part number R6000
Manufacturer LGE
File Size 172.76 KB
Description High Voltage Rectifiers
Datasheet download datasheet R6000 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
R6000F 0.2mA Fast Recovery High Voltage Rectifier Micro Commercial Components
R6000GP High Voltage Silicon Rectifier MCC
R600 General Purpose Rectifier Powerex Power Semiconductors
R6002END3 N-Channel MOSFET INCHANGE
R6002END3 Power MOSFET ROHM

Other Datasheets by LGE

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

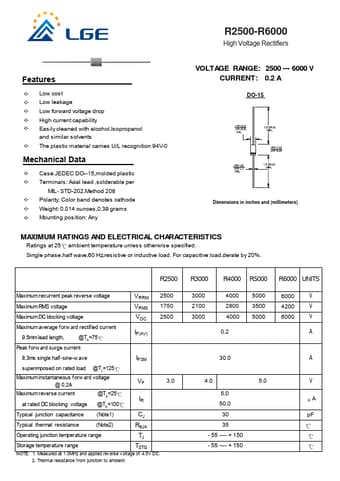

R2500-R6000 High Voltage Rectifiers Features — Low cost — Low leakage — Low forward voltage drop — High current capability — Easily cleaned with alcohol,Isopropanol and similar solvents — The plastic material carries U/L recognition 94V-0 Mechanical Data — Case:JEDEC DO--15,molded plastic — Terminals: Axial lead ,solderable per MIL- STD-202,Method 208 — Polarity: Color band denotes cathode — Weight: 0.014 ounces,0.39 grams — Mounting position: Any VOLTAGE RANGE: 2500 --- 6000 V CURRENT: 0.2 A DO-15 Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
