MJ2955 - PNP Transistor

The MJ2955 by INCHANGE is a PNP Transistor. Below is the official datasheet preview.

📥 Download Datasheet

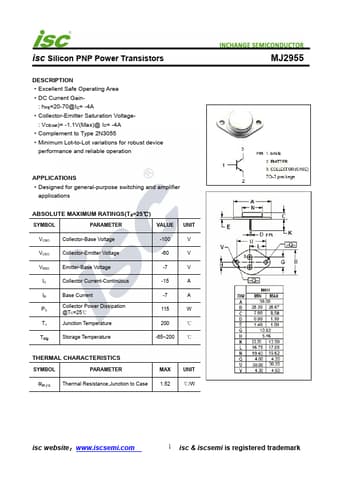

Official preview page of the MJ2955 PNP Transistor datasheet (INCHANGE).

Datasheet Details

Part number MJ2955
Manufacturer INCHANGE
File Size 202.11 KB
Description PNP Transistor
Datasheet download datasheet MJ2955-INCHANGE.pdf
Additional preview pages of the MJ2955 datasheet.

MJ2955 Product details

Description

Excellent Safe Operating Area DC Current Gain- : hFE=20-70@IC= -4A Collector-Emitter Saturation Voltage- : VCE(sat)= -1.1V(Max)@ IC= -4A Complement to Type 2N3055 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for general-purpose switching and amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -60
