MJ21193 - 16 ampere complementary silicon power transistors

Features

  • tribution; P. O. Box 20912; Phoenix, Arizona 85036. 1.
  • 800.
  • 441.
  • 2447 MFAX: RMFAX0@email. sps. mot. com.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MJ21193 Silicon Power Transistors ON
MJ21193 SILICON POWER TRANSISTOR SavantIC
MJ21193 PNP Transistor INCHANGE
MJ21193G Metal Package Power Transistor Thinki Semiconductor
MJ21194 NPN Transistor INCHANGE

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MJ21195 (MJ21195 / MJ21196) Silicon Power Transistors
MJ21196 (MJ21195 / MJ21196) Silicon Power Transistors
MJ2194 16 ampere complementary silicon power transistors
MJ2500 10 AMPERE DARLINGTON POWER TRANSISTORS
MJ2801 NPN Silicon Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

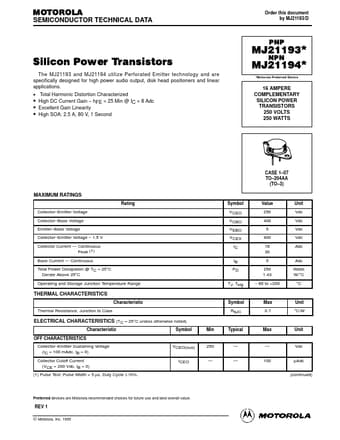

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MJ21193/D Silicon Power Transistors The MJ21193 and MJ21194 utilize Perforated Emitter technology and are specifically designed for high power audio output, disk head positioners and linear applications. • Total Harmonic Distortion Characterized • High DC Current Gain – hFE = 25 Min @ IC = 8 Adc • Excellent Gain Linearity • High SOA: 2.5 A, 80 V, 1 Second MJ21193* NPN MJ21194* *Motorola Preferred Device PNP 16 AMPERE COMPLEMENTARY SILICON POWER TRANSISTORS 250 VOLTS 250 WATTS CASE 1–07 TO–204AA (TO–3) MAXIMUM RATINGS Rating Collector–Emitter Voltage Collector–Base Voltage Emitter–Base Voltage Collector–Emitter Voltage – 1.
