MJ13335 - NPN Transistor

The MJ13335 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

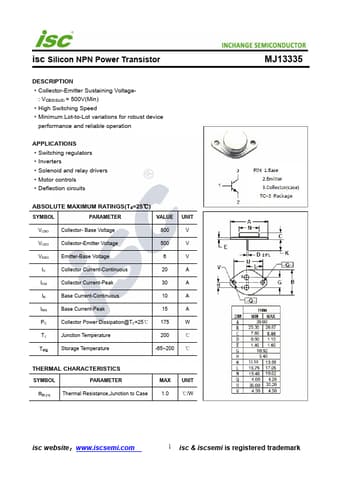

Official preview page of the MJ13335 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number MJ13335
Manufacturer INCHANGE
File Size 206.87 KB
Description NPN Transistor
Datasheet download datasheet MJ13335-INCHANGE.pdf
Additional preview pages of the MJ13335 datasheet.

MJ13335 Product details

Description

Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 500V(Min) High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching regulators Inverters Solenoid and relay drivers Motor controls Deflection circuits ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector- Base Voltage 800 V VCEO Collector-Emitter Voltage 500 V VEBO Emitter-Base Voltage 6 V IC Colle
