MJ13334 - NPN Transistor

The MJ13334 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

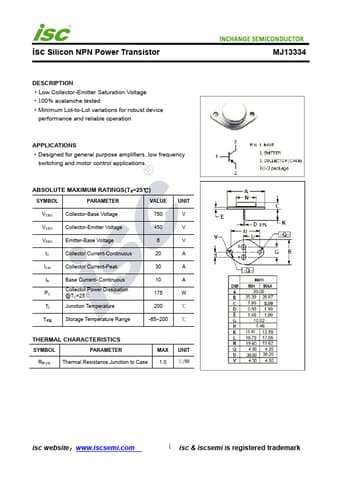

Official preview page of the MJ13334 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number MJ13334
Manufacturer INCHANGE
File Size 201.06 KB
Description NPN Transistor
Datasheet download datasheet MJ13334-INCHANGE.pdf
Additional preview pages of the MJ13334 datasheet.

MJ13334 Product details

Description

Low Collector-Emitter Saturation Voltage 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for general purpose amplifiers ,low frequency switching and motor control applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VCBO Collector-Base Voltage 750 VCEO Collector-Emitter Voltage 450 VEBO Emitter-Base Voltage 6 IC Collector Current-Continuous 20 ICM Collector Curre
