IRLU7807Z N-Channel MOSFET

IRLU7807Z Description

isc N-Channel MOSFET Transistor *.

IRLU7807Z Features

* With TO-251(IPAK) packaging
* High speed switching
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRLU7807Z Applications

* Power supply
* DC-DC converters
* Motor control
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 30 VGSS Gate-Source Voltage ±20 ID Drain Current-Continuous 43 IDM Drain Current-Single Pulsed 170 PD Total

📥 Download Datasheet

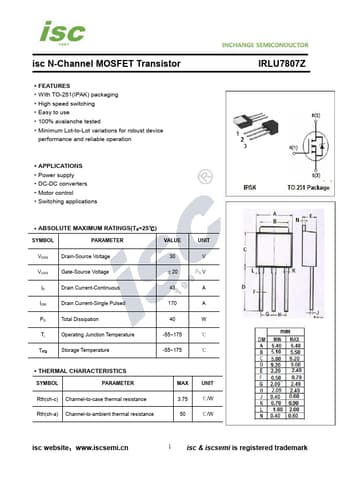

Preview of IRLU7807Z PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRLU7807Z
Manufacturer
INCHANGE
File Size
256.88 KB
Datasheet
IRLU7807Z-INCHANGE.pdf
Description
N-Channel MOSFET
