IRL540NS N-Channel MOSFET

IRL540NS Description

Isc N-Channel MOSFET Transistor IRL540NS *.

IRL540NS Features

* With To-263(D2PAK) package
* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRL540NS Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGSS ID IDM Gate-Source Voltage Drain Current-ContinuousTc=25℃ Tc=100℃ Drain Current-Single Pulsed ±16 36 26 120 PD Total Dissipation @TC=25℃ 140 Tch Max. Operating J

📥 Download Datasheet

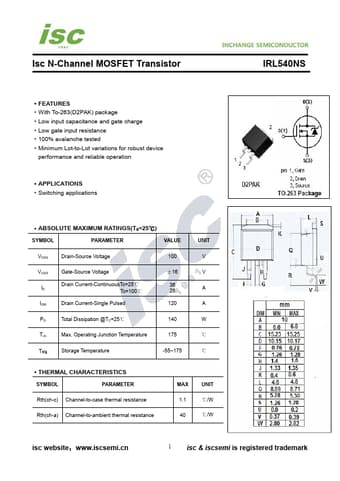

Preview of IRL540NS PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRL540NS
Manufacturer
INCHANGE
File Size
253.60 KB
Datasheet
IRL540NS-INCHANGE.pdf
Description
N-Channel MOSFET
