IRL530NL N-Channel MOSFET

IRL530NL Description

Isc N-Channel MOSFET Transistor *.

IRL530NL Features

* With To-262 package
* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRL530NL Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 100 V VGSS Gate-Source Voltage ±16 V ID Drain Current-ContinuousTc=25℃ Tc=100℃ 17 12 A IDM Drain Current-Single Pulsed 60 A PD Total Dissipation @TC=25℃ 79

📥 Download Datasheet

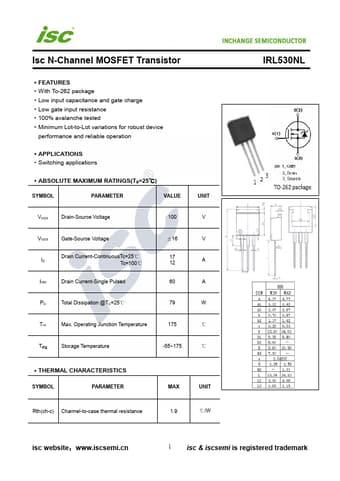

Preview of IRL530NL PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRL530NL
Manufacturer
INCHANGE
File Size
251.58 KB
Datasheet
IRL530NL-INCHANGE.pdf
Description
N-Channel MOSFET
