IRFU9N20D N-Channel MOSFET

IRFU9N20D Description

isc N-Channel MOSFET Transistor *.

IRFU9N20D Features

* With TO-251(IPAK) packaging
* High speed switching
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRFU9N20D Applications

* Power supply
* DC-DC converters
* Motor control
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 200 VGSS Gate-Source Voltage ±30 ID Drain Current-Continuous 9.4 IDM Drain Current-Single Pulsed 38 PD Total

📥 Download Datasheet

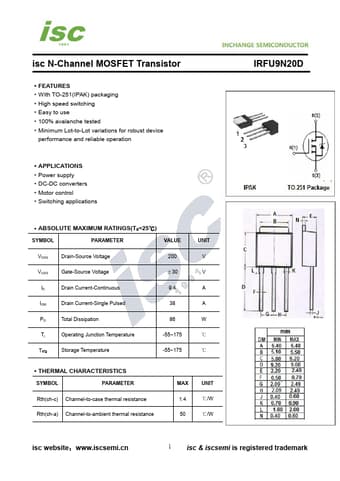

Preview of IRFU9N20D PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFU9N20D
Manufacturer
INCHANGE
File Size
257.04 KB
Datasheet
IRFU9N20D-INCHANGE.pdf
Description
N-Channel MOSFET
