IRFU7746 N-Channel MOSFET

IRFU7746 Description

isc N-Channel MOSFET Transistor *.

IRFU7746 Features

* With TO-251(IPAK) packaging
* High speed switching
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRFU7746 Applications

* Power supply
* DC-DC converters
* Motor control
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 75 VGSS Gate-Source Voltage ±20 ID Drain Current-Continuous 59 IDM Drain Current-Single Pulsed 230 PD Total

📥 Download Datasheet

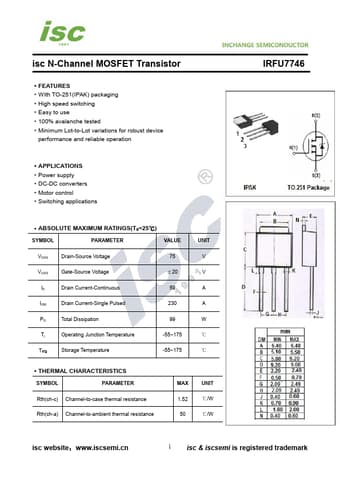

Preview of IRFU7746 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFU7746
Manufacturer
INCHANGE
File Size
256.51 KB
Datasheet
IRFU7746-INCHANGE.pdf
Description
N-Channel MOSFET
