IRFU7740 N-Channel MOSFET

IRFU7740 Description

isc N-Channel MOSFET Transistor *.

IRFU7740 Features

* With TO-251(IPAK) packaging
* High speed switching
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRFU7740 Applications

* Power supply
* DC-DC converters
* Motor control
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 75 VGSS Gate-Source Voltage ±20 ID Drain Current-Continuous 87 IDM Drain Current-Single Pulsed 330 PD Total

📥 Download Datasheet

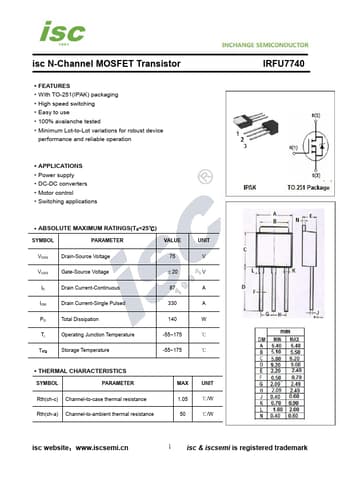

Preview of IRFU7740 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFU7740
Manufacturer
INCHANGE
File Size
256.79 KB
Datasheet
IRFU7740-INCHANGE.pdf
Description
N-Channel MOSFET
