IRFR420 N-Channel MOSFET

IRFR420 Description

isc N-Channel MOSFET Transistor .
Designed for use in switch mode power supplies and general purpose applications.

IRFR420 Features

* Drain Current
* ID= 2.4A@ TC=25℃
* Drain Source Voltage- : VDSS=500V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 3.0Ω(Max)
* 100% avalanche tested

IRFR420 Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 500 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 2.4 A IDM Drain Current-Single Pluse 8.0 A PD Total Dissipation @TC=25℃ 42 W TJ Max. Operating Junction Temper

📥 Download Datasheet

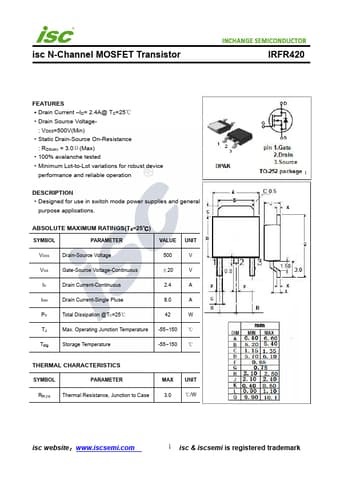

Preview of IRFR420 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFR420
Manufacturer
INCHANGE
File Size
259.21 KB
Datasheet
IRFR420-INCHANGE.pdf
Description
N-Channel MOSFET
