IPB65R150CFD - N-Channel MOSFET

Features

  • With TO-263(D2PAK) packaging.
  • Ultra-fast body diode.
  • High speed switching.
  • Easy to use.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operationz.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IPB65R150CFD MOSFET Infineon
IPB65R150CFDA CFDA Power Transistor Infineon Technologies
IPB65R110CFD MOSFET Infineon
IPB65R110CFD7 650V MOSFET Infineon
IPB65R110CFDA CFDA Power Transistor Infineon Technologies

Other Datasheets by Inchange Semiconductor

Part Number Description
IPB65R110CFD N-Channel MOSFET
IPB65R125C7 N-Channel MOSFET
IPB65R190C6 N-Channel MOSFET
IPB65R190C7 N-Channel MOSFET
IPB65R190CFD N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

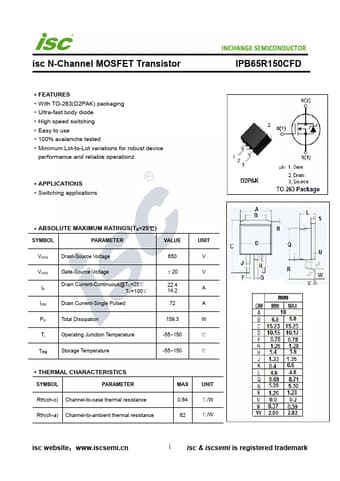

isc N-Channel MOSFET Transistor ·FEATURES ·With TO-263(D2PAK) packaging ·Ultra-fast body diode ·High speed switching ·Easy to use ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operationz ·APPLICATIONS ·Switching applications INCHANGE Semiconductor IPB65R150CFD ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 650 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±20 22.4 14.2 72 PD Total Dissipation 159.
