C2489 2SC2489

C2489 Description

INCHANGE Semiconductor isc Product Specification isc Silicon NPN Power Transistor 2SC2489 .
Good Linearity of hFE. Collector-Emitter Sustaining Voltage: VCEO(SUS)= 150V (Min). Wide Area of Safe Operation. Complement to Type 2.

C2489 Applications

* Designed for AF amplifier,high power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MAX UNIT VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 150 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 10 A ICM Collector Curr

📥 Download Datasheet

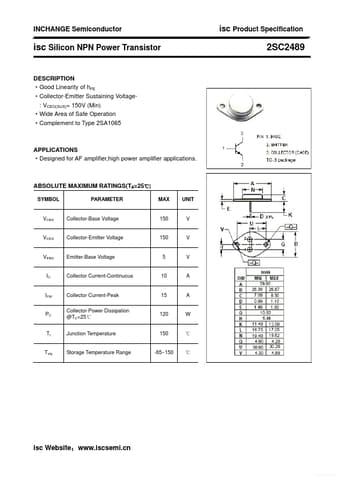

Preview of C2489 PDF
datasheet Preview Page 2

Datasheet Details

Part number
C2489
Manufacturer
INCHANGE
File Size
80.76 KB
Datasheet
C2489-INCHANGE.pdf
Description
2SC2489
